Description

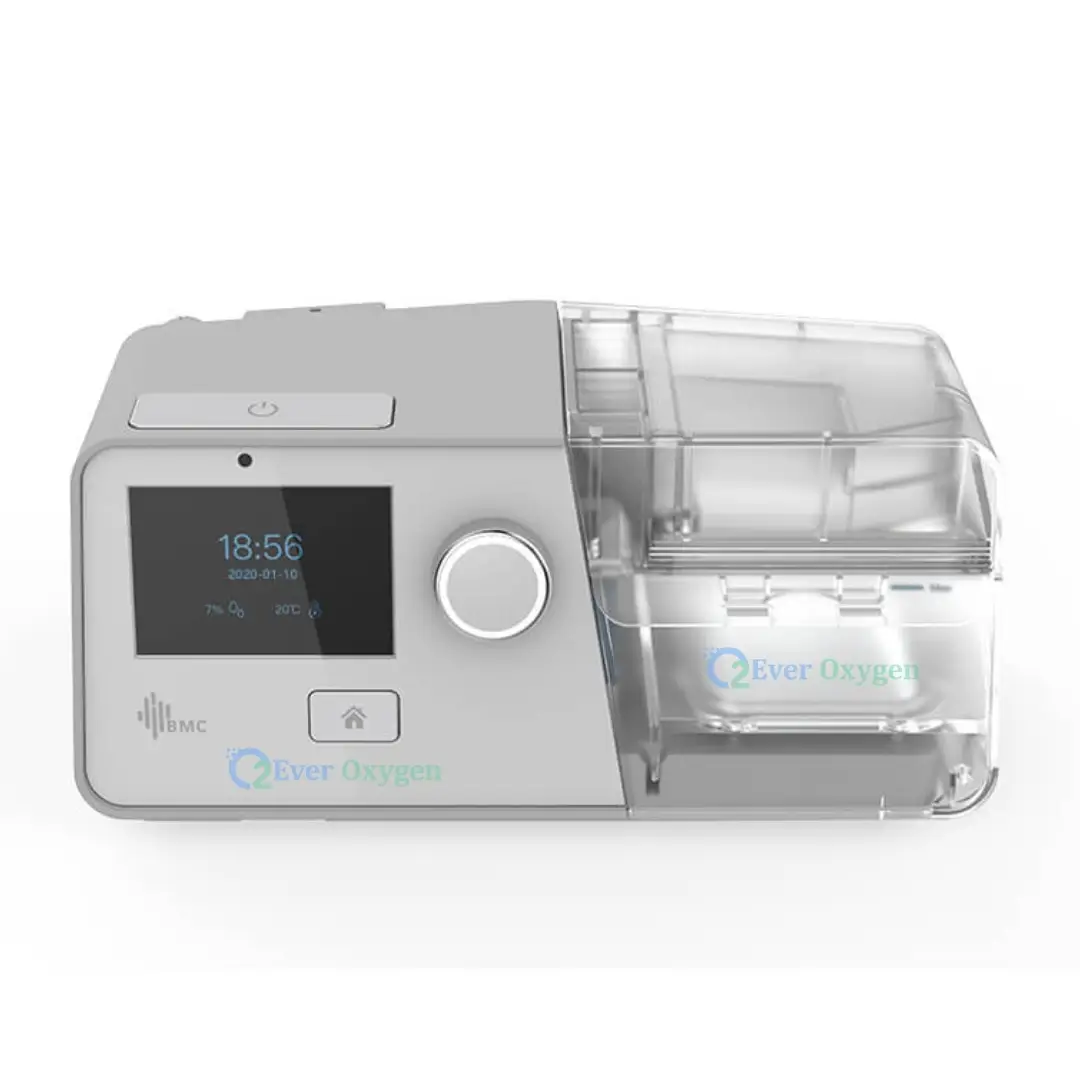

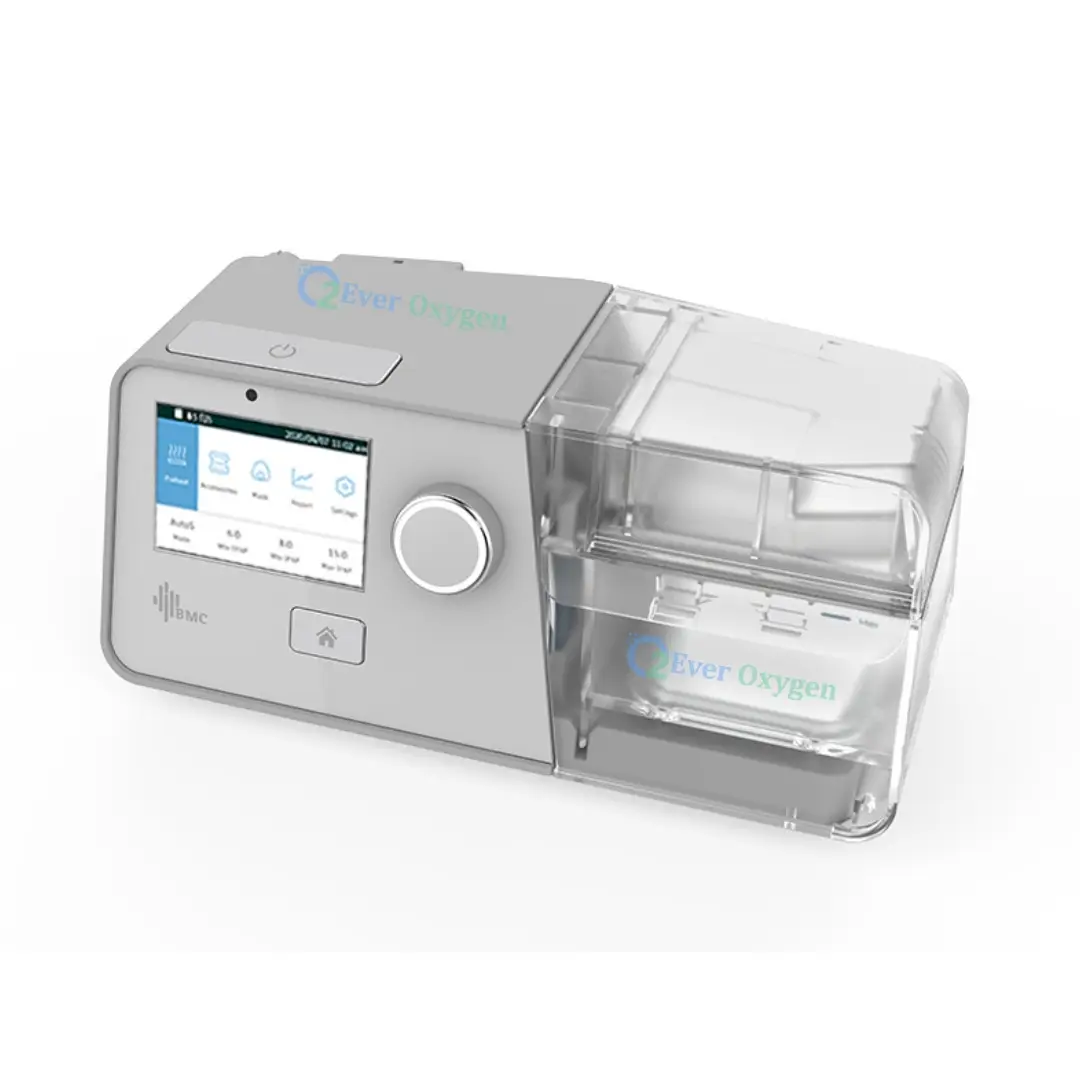

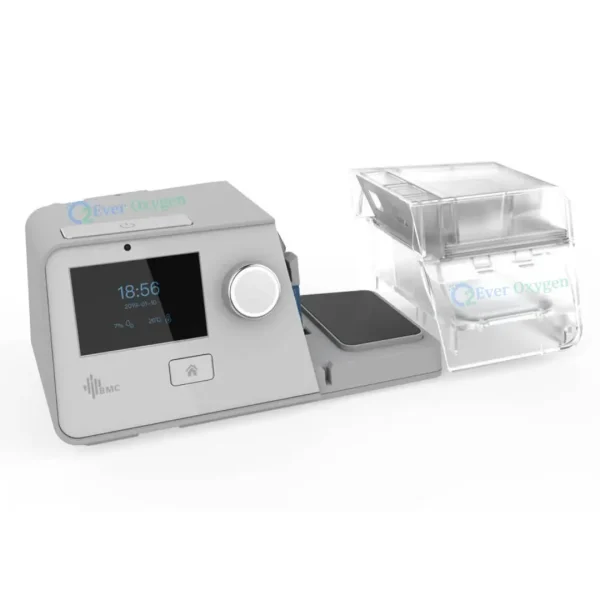

BMC G3 LAB is a high-performance Auto BiPAP system designed for advanced sleep apnea therapy and respiratory support. With a maximum pressure of 30 cmH₂O, intelligent pressure adjustment, and full data connectivity, this device is ideal for both sleep labs and home settings. It automatically adjusts inspiratory and expiratory pressure levels based on the patient’s breathing, ensuring optimal ventilation and comfort.

Key Features

• Auto BiPAP Functionality: Automatically adjusts IPAP and EPAP to suit the patient’s breathing pattern and therapy needs.

• S/T Mode: Supports spontaneous breathing and delivers backup breaths when needed.

• Target Tidal Volume: Maintains ideal tidal volume by adjusting pressure support based on patient weight and ventilation goals.

• Inspiratory Time Control (Ti min / Ti max): Avoids under-ventilation and ensures consistent inspiratory time.

• Auto Leak Compensation: Real-time detection and correction of air leakage during therapy.

• CSA & CSR Detection: Advanced identification of Central Sleep Apnea and Cheyne-Stokes Respiration using oscillation technology.

• Pre-heat & Auto Humidification: Ensures comfort by warming the water chamber and regulating humidity automatically.

• Ultra Quiet Operation: Noise level under 26 dB for uninterrupted sleep.

• User-Friendly Interface: 3.5-inch full-color display, intuitive controls, and one-button access to frequently used functions.

Data & Connectivity

• SD Card: Continuous data recording

• Built-in WiFi and Cellular Module

• iCode, iCode QR, iCode QR+

• PAP Link Mobile App

• BMCares Cloud Platform

• RESmart nPAP Data Analysis Software (PC and Web versions)

Technical Specifications

• Pressure Range: 4–30 cmH₂O

• Dimensions: 265 mm × 145 mm × 114 mm

• Weight: 1.7 kg

• Humidifier Capacity: 360 ml

• Humidifier Settings: Off, 1–5, Auto (35°C to 68°C)

• Sound Level: <26 dB

• Screen: 3.5″ full-color display

Optional Accessories

• SpO₂ Sensor (Finger clip or sleeve)

• Integrated Heated Tubing

• PM2.5 Filter Box

• Cellular/WiFi module

• DC Converter & Power Bank

Ideal For

• Sleep apnea patients who need precise, adaptable pressure support

• Respiratory insufficiency and COPD patients

• Sleep labs conducting titration

• Home users requiring advanced BiPAP therapy with real-time monitoring
